The shaft plan
- Temperature inside machine room should be kept between +5°C -40°C
- The power supply should be set within 1000mm from access door center
- The shaft lighting, main power switch, ground protection should be by user
- The drawing size is fit for table type dumbwaiter below 250kg
- About the table type dumbwaiter, if the headroom height is not enough, you may reduce the serving height of top floor to solve this problem
Product Family

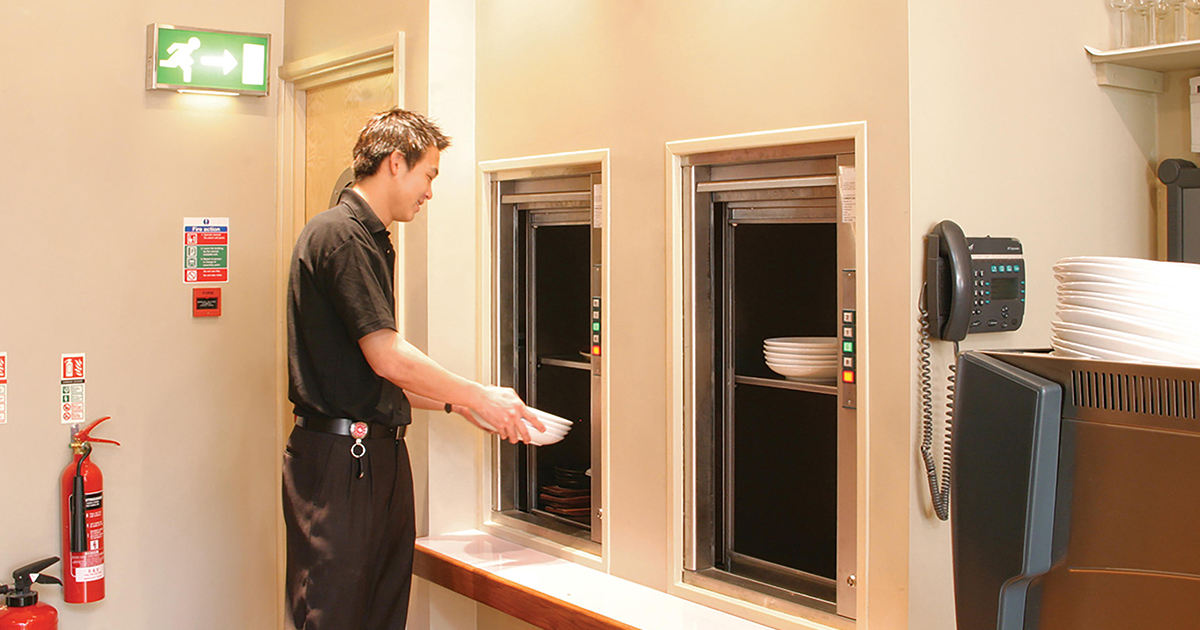

Window Type Dumbwaiters
Applicable range: small goods conveying, such as food conveying in schools and kindergartens’ canteens, hotels, western restaurants and snack bars, or transportation of money, books and medical drugs in banks, libraries and hospitals.
Service height: equal height or lower than users’ waist; conform to the comfort level of the best height of picking and placing articles in ergonomics.
Vertical bi-parting door(optional car door).
One removable shelf for standard, fully utilizing the car space,”removable”let the avaiable space more flexible (more shelves should be option).
100 Kg – 200 Kg
Recommended Load Capacity
Floor Type (Trolley Type)
Applicable range: carts can be used to convey large-scale cargoes, such as raw-food materials or fresh food materials in schools or kindergartens’ canteens, hotels, western restaurants and snack bars or linens and laundry transportation in guesthouses and hotels.
Service height: ground level.
Car entrance protection: car protection bar is configured to prevent large-scale goods or carts from slipping off the lift car(2 panels up sliding door should be equipped with the all-sealed car door).
200 Kg – 300 Kg
Recommended Load Capacity
